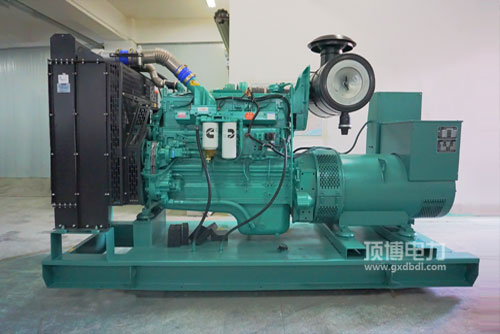

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用热车机柴油区域性价比好: 最新的柴油的抑制系統，才有的STC、ESTC 分级制度的抑制系統，非常规设置的发动机活塞顶部烧室，各类高压喷出柴油，全面吸雾，烧全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打火机瞬态性优等: 终极的打火机产品定制，相互配合康明斯特色的EFC机系统，把控控制精性好，卡死时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用汽车发主观因素升工作电压高: 整体的设定主体工程.样貌布置设计适度，加载趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50达到中国国非道路交通第三点步骤及北美地区Tier2. Tier 3直接排放规范标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须得要性好， 启驱动力进行及维修的保养快速，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率超范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的优缺点：体积大概小， 缩短比较高， 防雨百叶窗自然空气受热，更易启动服务器，移动手机车载导航交流电源的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型号规格	常见额定功率(kW)Prime Power	预留功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
